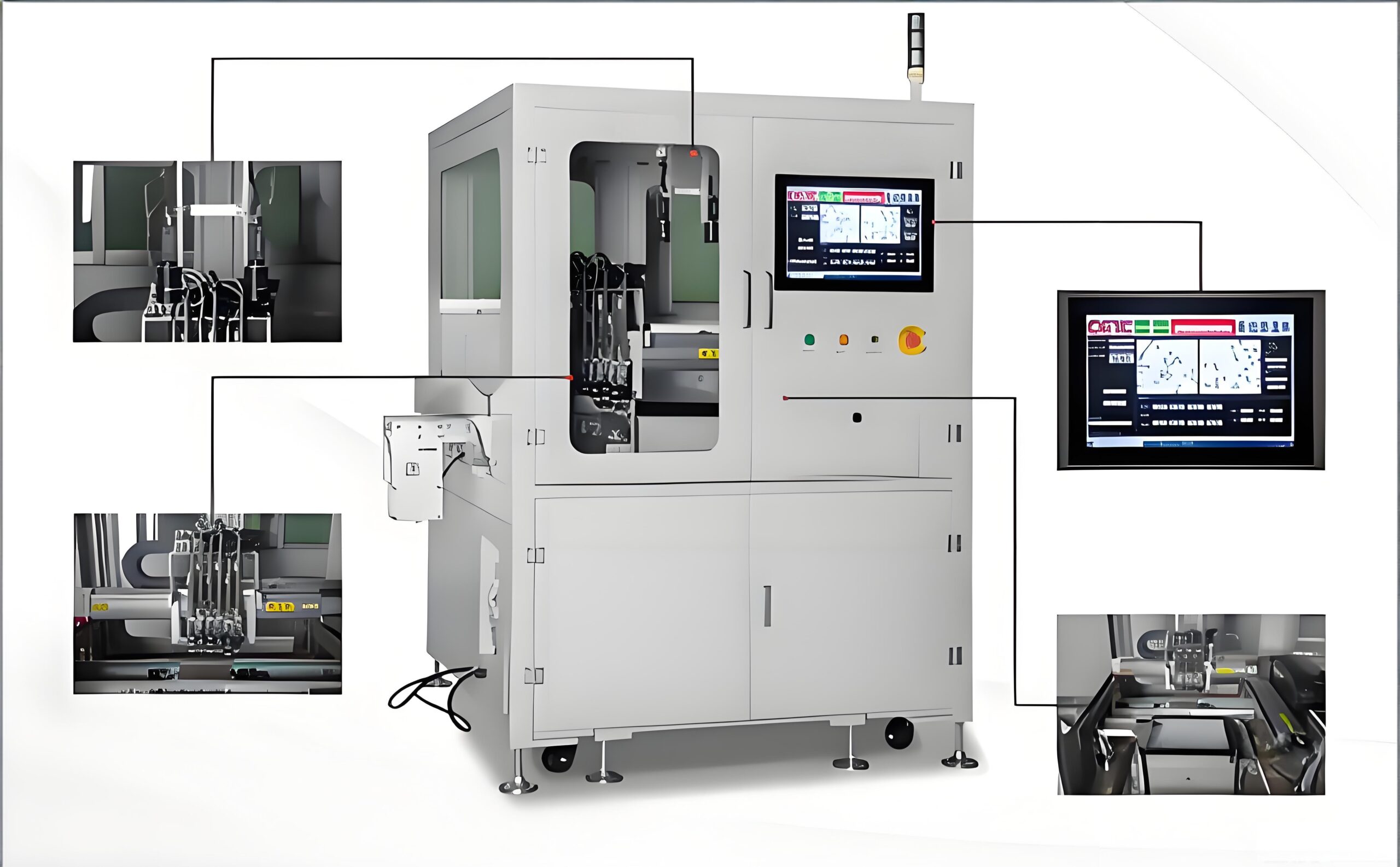

Flexible Automatic Tape & Reel Machine
A vision-guided, flexible automation platform for precise component placement
into trays and subsequent tape & reel operations.
Designed for high-mix production, the system integrates CCD vision recognition,
automated component picking, tray placement, and optional tape & reel functionality.
It provides full systemized control for repeatable and efficient operation.
System Overview
The system utilizes flexible tray feeding and a large-field CCD camera for
automated component recognition and visual programming.
Operators place trays onto the fixture manually. After pressing the start button,
the machine automatically identifies components, verifies orientation, and
places them into the tray. Upon completion of one tray, the system returns
and repeats the process for subsequent trays.
For tape & reel operations, simply switch the control mode. After loading
the carrier tape and cover tape, and setting the distance and quantity,
the system automatically completes the tape & reel process.
Key System Features
- Flexible tray feeding with visual CCD recognition
- Automated component picking and tray placement
- Optional tape & reel mode with configurable distance and quantity
- Fully integrated control system with centralized operation
- Easy-to-use interface for quick mode switching
- Customizable configuration to meet specific product requirements
Technical Specifications
| Machine Dimensions (L × W × H) | Customizable |
| Motion System | Servo motors, stepper motors, precision linear modules |
| Control Platform | Panasonic PLC with Weinview HMI |
| Vision System | CCD cameras for orientation detection and component recognition |
| Electrical Components | Mean Well DC power supply, CHINT safety devices, AC contactors |
| Mechanical Parts | Ball screw modules, in-house machined parts, custom trays |
Engineering Philosophy
Developed with a focus on accuracy, repeatability, and flexibility,
the platform supports high-mix production environments while maintaining
consistent placement quality and operational stability.
Modular design and standardized components ensure ease of maintenance and
future scalability for customized production requirements.
