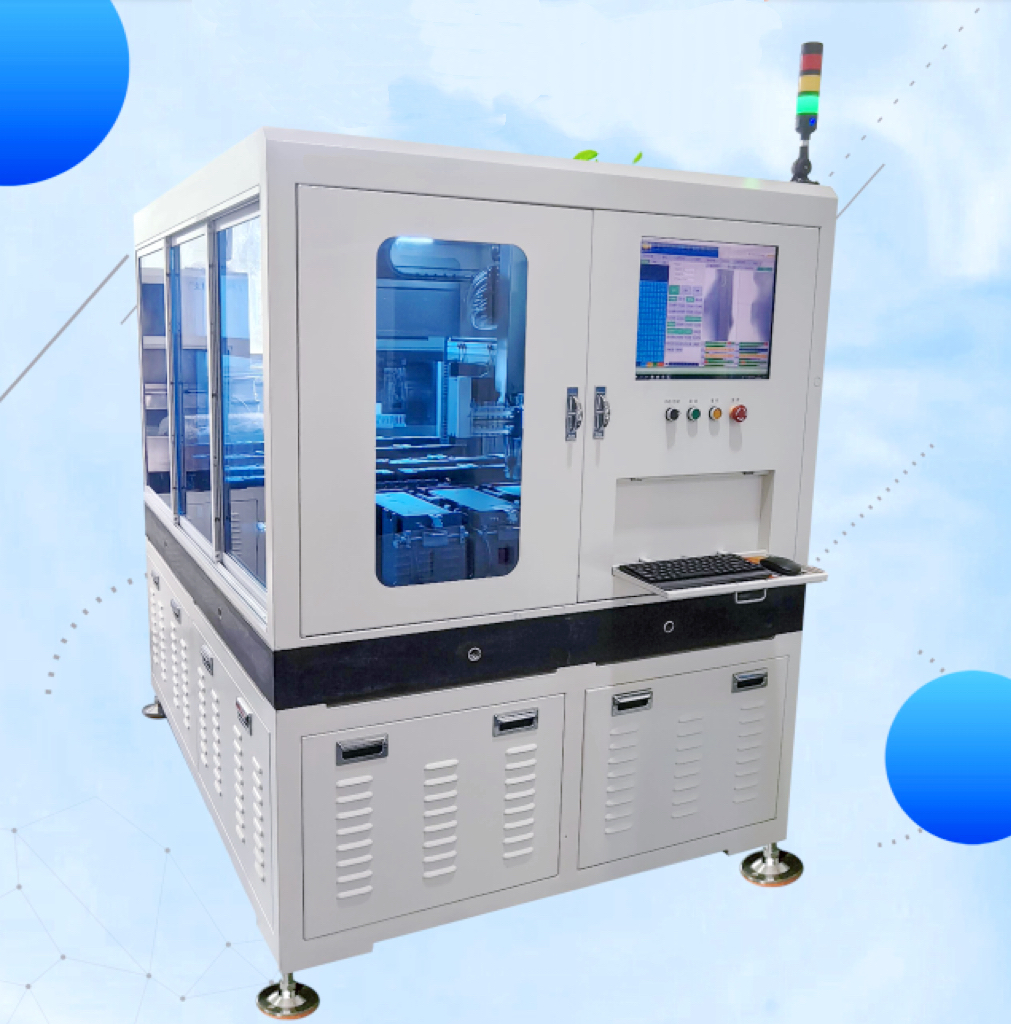

64-Site Automated Test System
High-capacity automated testing solution for IC components with multi-site operation, ensuring high throughput and consistent quality.
Components loaded in trays are automatically processed through multiple test sites. Good and defective units are sorted and placed in separate trays. Supports testing for LPDDR200, 221, 254, and 315-ball ICs. Test duration is adjustable, and the system communicates automatically with the software. Changing product series only requires switching the corresponding test fixture.
The system is fully customizable to your testing software requirements, and optional software packages are also available.
System Overview
This 64-site automated test system streamlines IC component testing with a fully integrated workflow. Trays of components are automatically loaded, tested across multiple stations, and sorted into pass/fail trays. The system supports automated tray exchange and stacking for continuous high-volume operation.
Designed for high-efficiency production environments, this system reduces manual handling, improves accuracy, and ensures repeatable results for advanced IC testing.
Key System Features
- 64-site automated IC/component testing
- Automatic tray exchange and stacking
- Good/NG sorting for efficient quality control
- Adjustable test duration and flexible software interface
- Robust communication and easy series change via test fixtures
- Fully systemized operation for repeatability and reliability
- Optional software packages or customer-provided software supported
Technical Specifications
| Machine Dimensions (L × W × H) | 1850 × 1350 × 1800 mm |
| Motion System | Servo motors, stepper motors, precision linear modules |
| Control Platform | Panasonic PLC with Weinview HMI |
| Vision System | CCD cameras for direction recognition and inspection |
| Electrical Components | Mean Well DC power, CHINT safety devices, AC contactors |
| Mechanical Parts | Ball screw modules, in-house machined parts, custom tooling trays |
Engineering Philosophy
Designed for high-volume efficiency, precision, and reliability, the 64-site automated test system integrates multi-station testing and tray management into a single workflow. This reduces manual labor and maximizes throughput without compromising quality.
Modular architecture and standardized components ensure easy maintenance and enable customization to meet varying production and testing requirements globally.
